Seamless connection
Super High Contrast
High protection level: shockproof, anti-collision, moisture-proof, dust-proof, LED panel front side waterproof (IP65).
Energy saving: Common cathode circuit design.
convenient operation and maintenance.
≥15000：1 High Contrast Ratio,High Refresh Rate 3840Hz.
Superior Reliability & Longer Lifespan.
Enhanced Heat Dissipation & Higher Brightness.
Ultra-High Brightness & Contrast with Exceptional Color Accuracy.
Precision Grayscale Processing for Unparalleled Detail Clarity.
High Refresh Rate & Low Scanning – Flawless Image Quality for Both Static and Dynamic Content.
Our eye-friendly design features soft light with low blue light, minimal radiation, zero noise, and reduced heat emission—ensuring comfortable viewing and preventing eye strain during extended use.

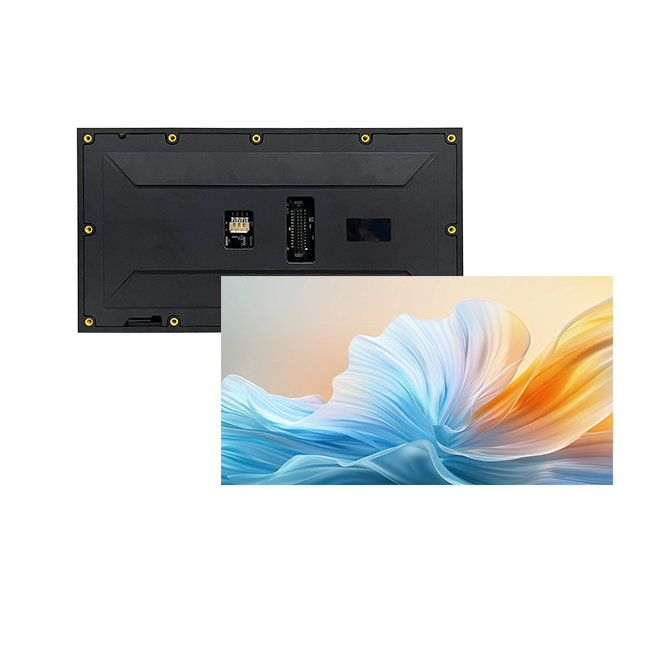

Cabinet thickness as slim as 35.5mm, 40% thinner than conventional products.
Only 4kg per unit—ultra-lightweight, saving installation space while reducing shipping and labor costs.
Beyond its stunning visuals, this high-resolution LED display has super performance. You can view even the subtlest details with precise color reproduction and exceptional contrast
| Pixel pitch (mm) | 0.78 | 0.93 | 1.25 | 1.56 | 1.87 |
| Application | Indoor | ||||
| Pixel | Real Pixel | ||||
| Module size（mm） | 150*168.75 | 300*168.75 | |||
| Module resolution | 192*216 | 320*180 | 240*135 | 192*108 | 160*90 |
| Scaning | 1/54 | 1/54 | 1/120 | 1/108 | 1/90 |
| Brightness (nit) | 600 | ||||
| Pixel density (㎡） | 1638400 | 1137777 | 640000 | 409600 | 284444 |
| Control system | seperated | Nova 3-in-1 Board | Power Supply/Receiving Card/Hub Card Seperated | ||
| Cabinet Size(mm) | 600*337.5 | ||||
| refresh(Hz) | ≥3840 | ||||
| contrast ratio | 20000:1 | ||||
| Certification | CCC, TUV(CE), FCC approval | ||||
It is not just ultra-thin COB LED screens, they’re also energy-saving COB LED displays. Besides offering high-performance and easy installation, BAKO’s thin COB LED screens are built with energy-efficient COB technology that can save you power costs and help lessen your carbon footprint.
